SABS664 Non-rising Stem Resilient Soft Seat Gate Valve

SABS664 Non-rising Stem Flange Resilient Wedge Gate Valve
No.:ZQF0113
1. Design standard:SABS664.
2. Rated pressure:PN10/PN16.
3. Rated temperature:0.6℃ to 52℃.
4. Flange ends conform to SABS1123.

DIN3352 F5 Socket End Resilient Soft Gate Valves

DIN3352-F5 Socket End Resilient Soft Seat Gate Valves
No.:ZQS0102
1. Design and manufacture:DIN3352.
2. Working pressure:PN10,PN16.
3. Max working temperature:NBR-80℃；EPDM-120℃.
4. Size:DN50-DN300(63mm-315mm).

DIN3352 F5 Non-rising Stem

DIN3352-F5 Non-rising Stem Resilient Soft Seat Gate Valves
No.: ZQF0116
1. Face to face is according to DIN EN558-1.
2. Flange drilled is according to DIN EN1092-2.
3. Working temperature: 0~100℃.
4. Working pressure: PN10-PN16.

DIN3352 F4 Rising Stem

DIN3352-F4 Rising Stem Resilient Soft Seat Gate Valves
No.:ZQF0107.
1. Design and manufacture:DIN3352.
2. Face to face dimensions:DIN3202 F4.
3. Flange end:DIN2532,DIN2533.
4. Body test:2.4Mpa.
5. Sealing test:1.76Mpa.

DIN3352 F4 Non-rising Stem

DIN3352-F4 Non-rising Stem Resilient Soft Seat Gate Valves
No.:ZQF0106
1. Face to face is according to DIN EN558-1.
2. Flange drilled is according to DIN EN1092-2.
3. Working temperature:0～100℃.
4. Working pressure:PN10-PN16.

DIN 3352-F4 Rising Stem Metal Seat Gate Valve

DIN3352-F4 Non-rising Stem Metal Seat Gate Valve
No.:ZQF0207
1. Face to face is according to DIN EN558-1.
2. Flange drilled is according to DIN EN1092-2.
3. Working temperature: 0~100℃.
4. Working pressure: PN10-PN16.

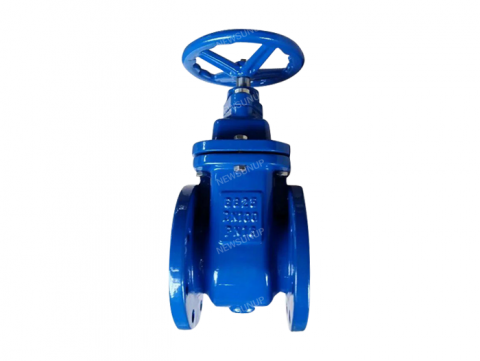

DIN 3352-F4 Non-rising Stem Metal Seat Gate Valve

DIN3352-F4 Non-rising Stem Metal Seat Gate Valve
No.:ZQF0206
1. Face to face is according to DIN EN558-1.
2. Flange drilled is according to DIN EN1092-2.
3. Working temperature: 0~100℃.
4. Working pressure: PN10-PN16.

BS5163 Rising Stem Resilient Soft Seat Gate Valves

BS5163 Rising Stem Resilient Soft Seat Gate Valves
No.:ZQF0105
1. Design and manufacture:BS5163.
2. Face to face dimensions:BS5163.
3. Flanged end:BS4504/EN1092-2.
4. Size:DN40-DN400.
5. Working pressure:PN10,PN16,PN25.
6. Max working temperature:NBR-80℃ EPDM-120℃ Silica gel-150℃.

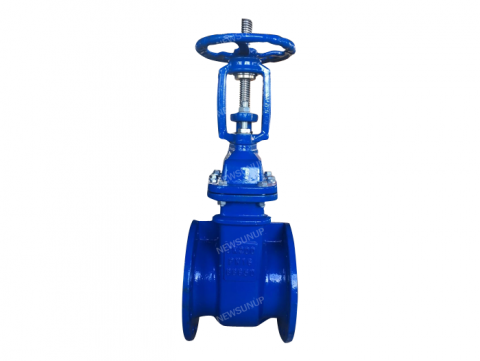

BS5163 Rising Stem Metal Seat Gate Valve

BS5163 Rising Stem Metal Seat Gate Valve
No.:ZQF0205
1. Face to face is according to BS EN558-1.
2. Flange drilled is according to BS EN1092-2.
3. Working temperature: 0~100℃.
4. Working pressure: PN10-PN16.
