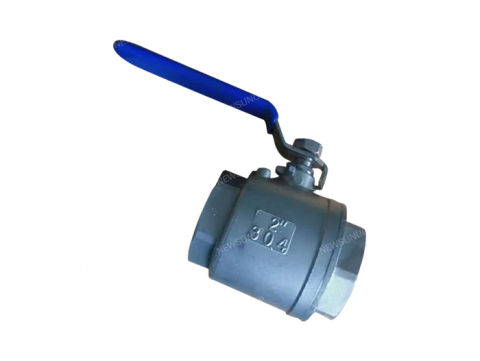

Stainless Steel Ball Valve
Stainless steel ball valve
No.: QPT0102
Specification:
1. Nominal pressure:PN1.6,2.5,4.0,6.4MPa.
2. Strength testing pressure:PT2.4,3.8,6.0,9.6MPa.
3. Seat testing pressure(low pressure):0.6MPa.
Applicable media:
1. Q11F-(16-64)C Water,Oil,Gas.
2. Q11F-(16-64)P Nitric acid.
3. Q11F-(16-64)R Acetic acid.
Applicable temperature:-20～180℃.

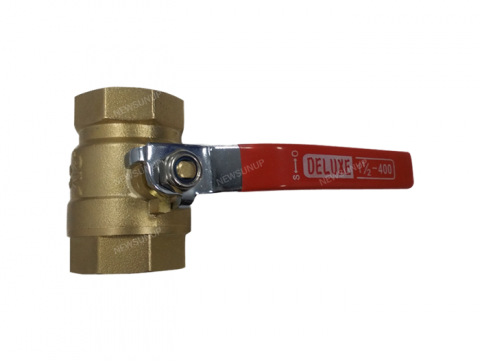

Brass Ball Valve
Brass Ball Valve
No.: QTT0102
1. Nominal pressure: PN≤1.6Mpa.
2. Working medium: Water, Oil, Non-corrosive and non-combustible gas.
3. Working temperature: -20℃≤T≤150℃.
4. Pipe thread to ISO228.
