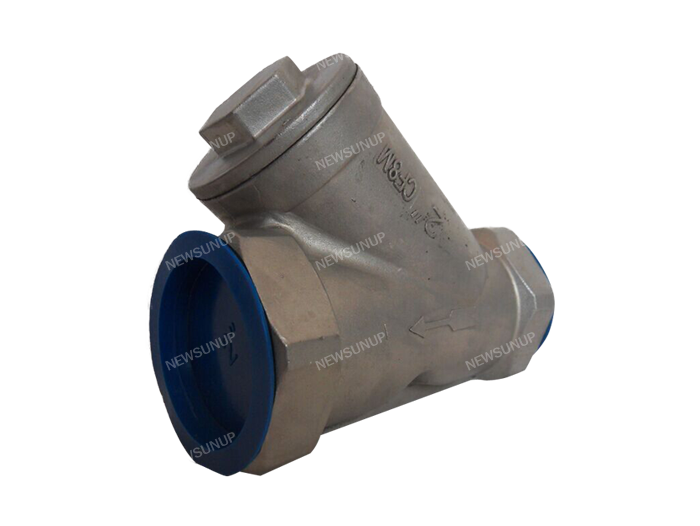

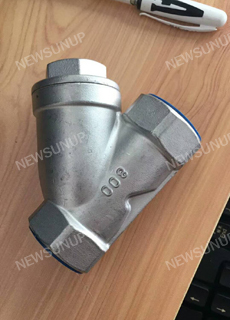

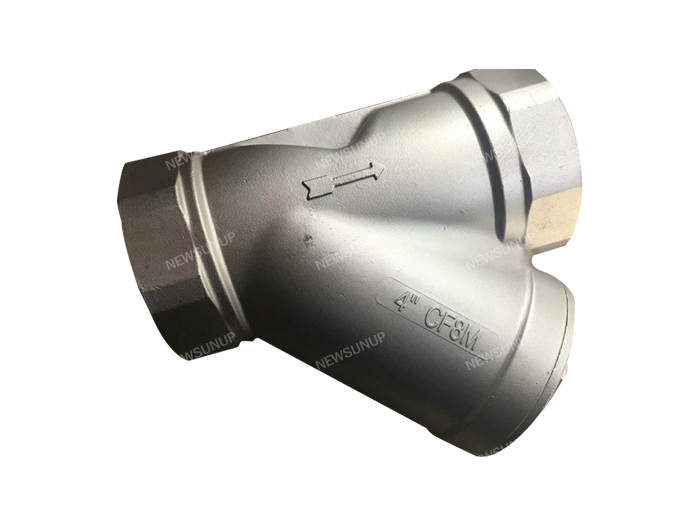

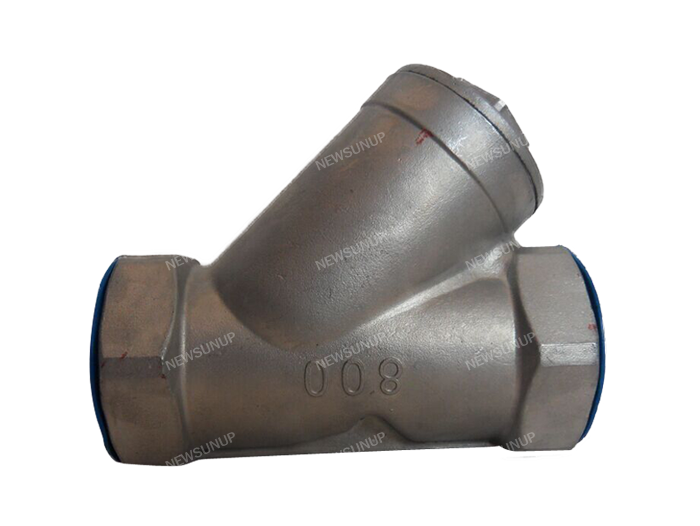

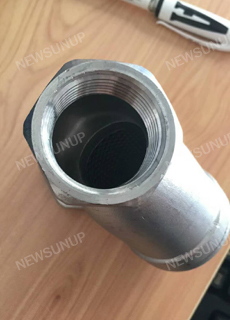

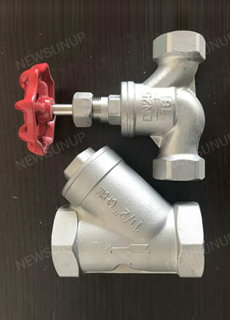

Y strainer
No.: GPT0109/GRT0109
1. Investment Castings For Body And Cap.
2. Thread End: ANSI B2.1, BS21, ISO7/1.
3. Pressure Rating: 800PSI(PN40).
4. Working Temperature: -25℃ - 180℃.
5. Material: CF8M, CF8, CF3M, WCB.
6. Inspection Testing: API598, EN12266.
Y strainer belongs to pipeline coarse filter, it can filter big PM in fluid, air or other media. It was installed on the pipeline to remove larger solid impurity in fluid, so that the machinery equipment(include compressor and pump etc),instrument can work and operate normally. to steady technology and guarantee safety production. when the fluid enter into certain size screen, the impurity was stopped. and the clean filtrate will be discharged from strainer exit. when it was cleaned, as long as knock down screen, reload after handling, so the use and maintenance is very convenient.

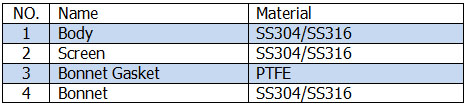

The Major Parts Material

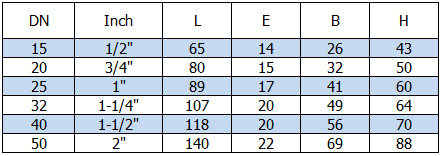

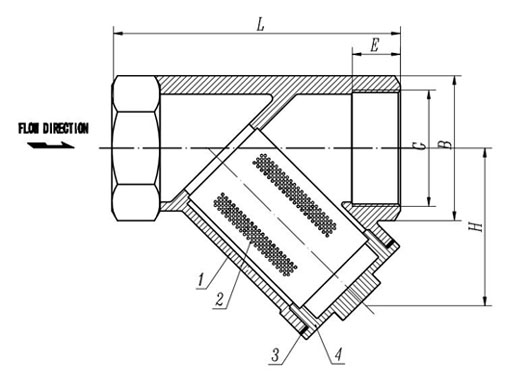

Main Connection Dimensions(mm)
