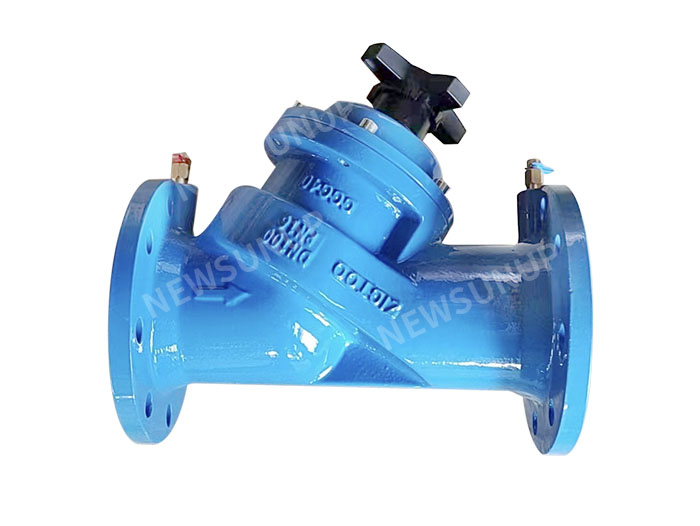

Static Balancing Valve
No.:KPF-SSV-FP
1. Connection Standard: EN1092-1/2 GB/T 17241.6-2008.
2. Connection: Flange Connection.
3. Working Temperature: -10~120℃.
4. Working Pressure: PN16.
5. Fluid Medium: Cold and Hot Water / Ethylene.
Application:
The series SSV Static Balancing Valve is designed for flow balancing in cooling, heating or process water systems. Its shutoff feature can be instead the Globe valve. It also has the function of locking of maximum range. The function of locking will be opened after its system debugged. If the products need to be repaired, you can close the Static Balancing Valve, and then directly return to the maximum range. It can avoid the second text, save much time and cost. Its measuring joint enable convenient system troubleshooting. Static balancing valve be used in water supply or return water pipe.
Features:
▪ Accurate flow control
▪ Numerical indicator of opening rate on the handwheel
▪ Opening of the lock set position
▪ Shut-off function achieved by handwheel
▪ Self-sealing measuring points to protect against leakge
Technical Parameter:
| DN | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
| Kvs | 32.3 | 54.0 | 94.47 | 137.20 | 211.20 | 330.40 | 408.52 |
| DN | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| Kvs | 759.25 | 1162.25 | 1703.30 | 2250 | 2804 | 3750 | 4210 |
Measuring Accuracy:

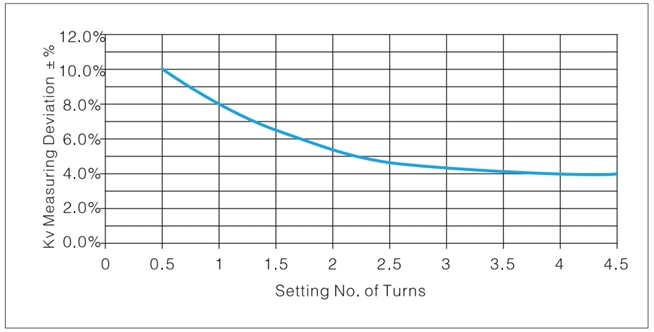

According to the GB/T 28636-2012 standard, when the valve’s opening rate is greater than 50%, the deviation is lower than ±5%. Based on this, it is suggested to choose a valve with at least 50% opening rate when working under the design flow. Additionally, in order to ensure adequate on-site commissioning allowance, it is recommended to set the valve at around 75% opening rate.
Installation:
People should ensure that there is no debris in the system before installation, please note that static balancing valve with flowing arrow point in the direction of the flow. Static Balancing Valve is usually installed on return pipe. When combined with differential pressure balancing valve, it can be used for supply pipe.

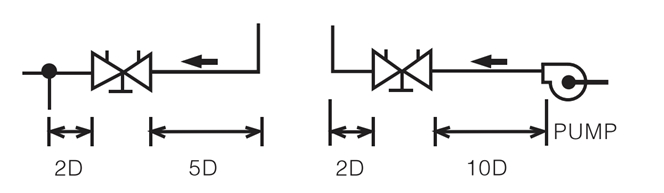

Generally, when connected to an elbow or a pump, the valve must keep a certain distance from the elbow or the pump, it is necessary to maintain a certain length of straight pipe, When connecting with elbow, follow valve 5d, rear 2d principle; Follow the 10d principle when connecting with a pump.

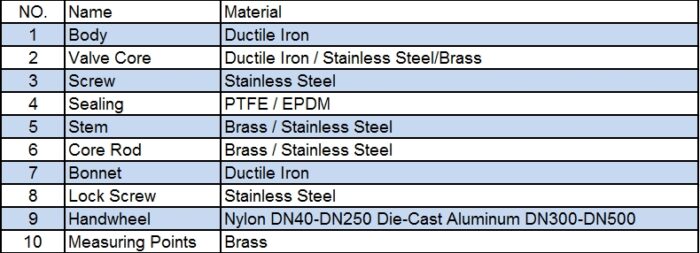

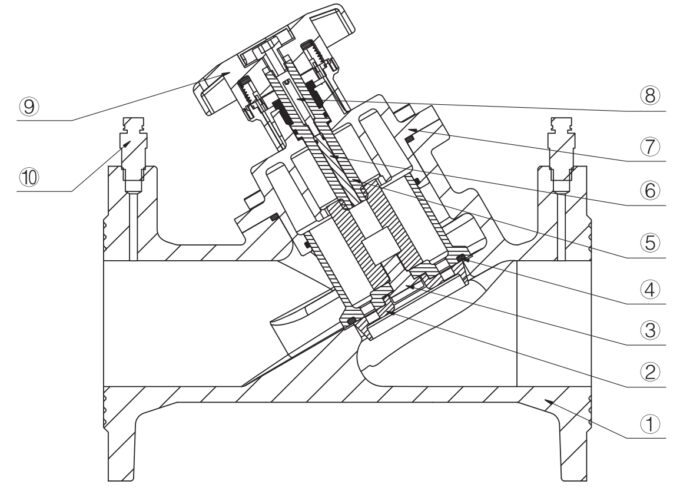

The Major Parts Material

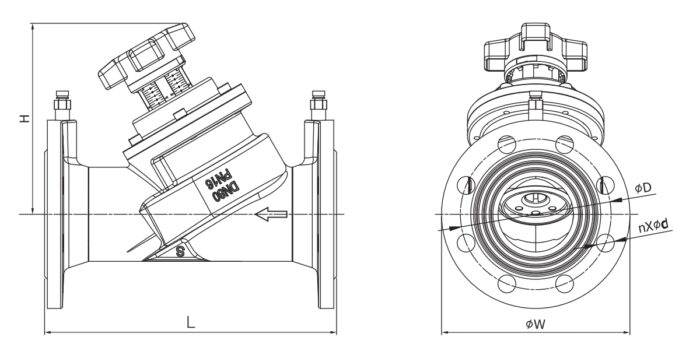

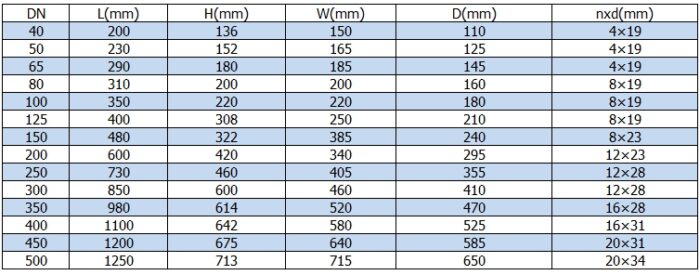

Main Connection Dimensions(mm)
