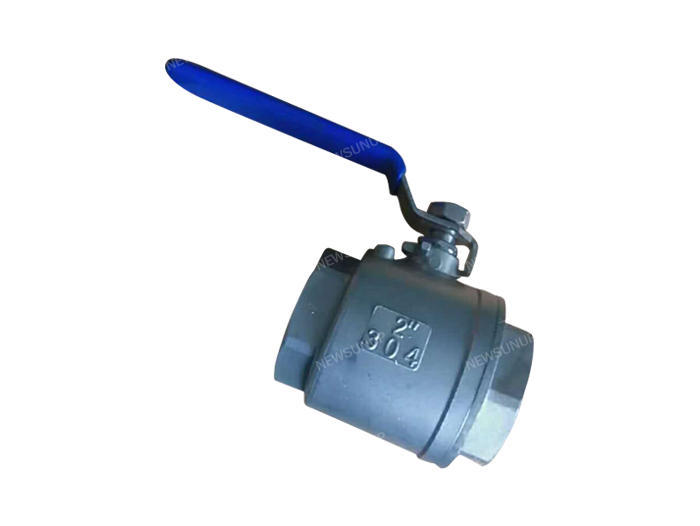

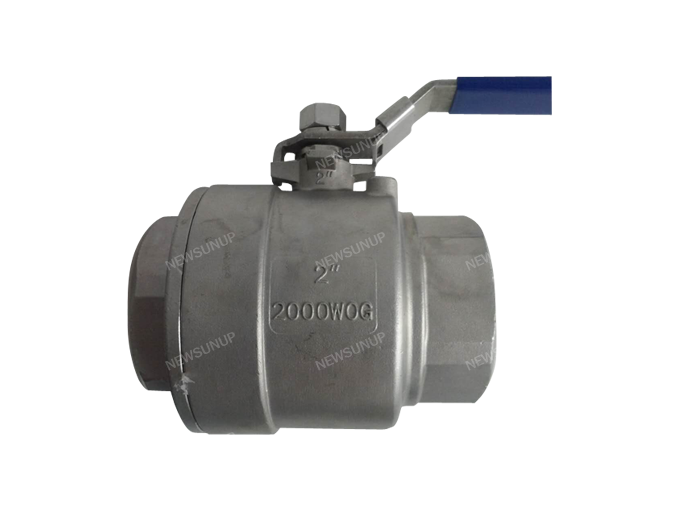

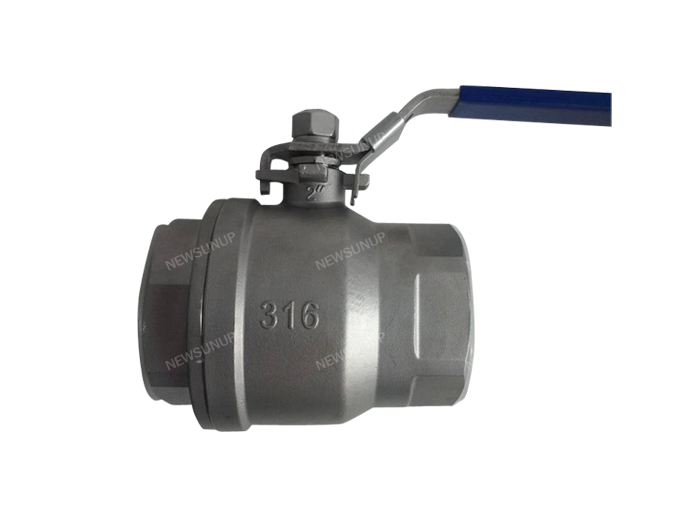

Stainless steel ball valve
No.: QPT0102
Specification:
1. Nominal pressure:PN1.6,2.5,4.0,6.4MPa.
2. Strength testing pressure:PT2.4,3.8,6.0,9.6MPa.
3. Seat testing pressure(low pressure):0.6MPa.
Applicable media:
1. Q11F-(16-64)C Water,Oil,Gas.
2. Q11F-(16-64)P Nitric acid.
3. Q11F-(16-64)R Acetic acid.
Applicable temperature:-20～180℃.
Full Port, Stainless Steel Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. They feature a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome stainless steel ball, and steel handle or iron handle. Thread: BSP ,NPT.

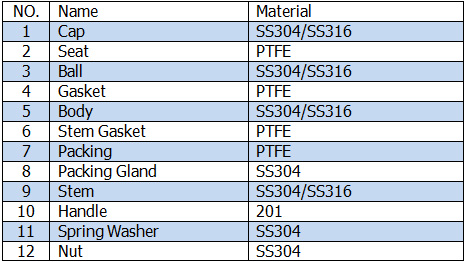

The Major Parts Material

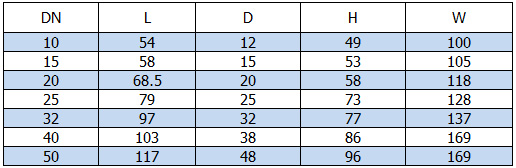

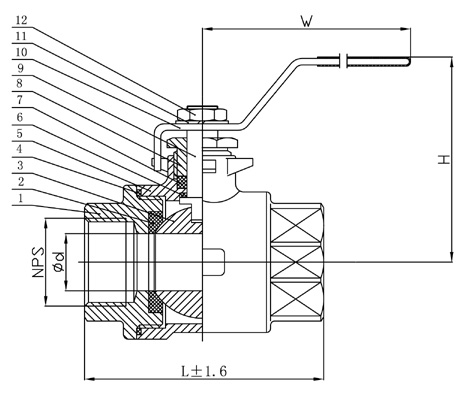

Main Connection Dimensions(mm)
