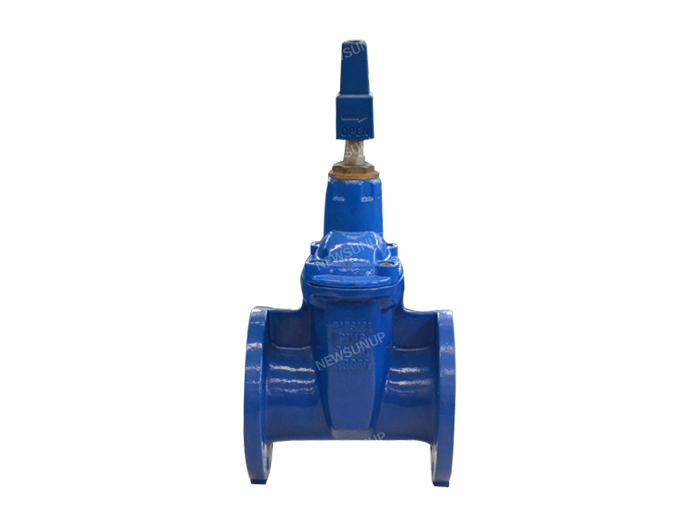

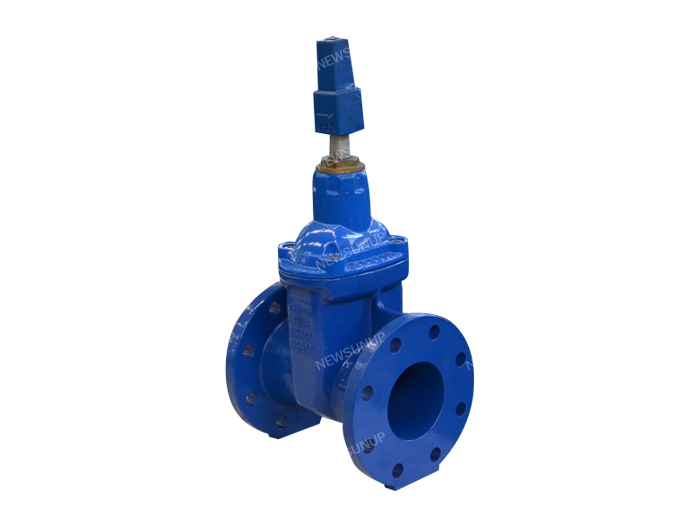

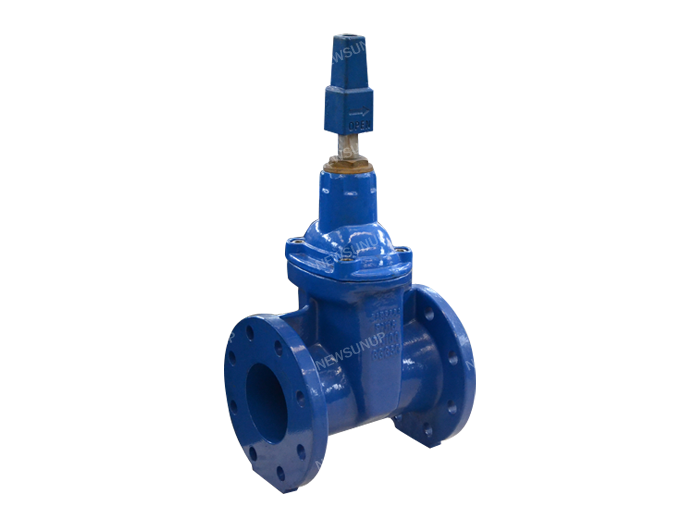

SABS664 Non-rising Stem Flange Resilient Wedge Gate Valve
No.:ZQF0113
1. Design standard:SABS664.
2. Rated pressure:PN10/PN16.
3. Rated temperature:0.6℃ to 52℃.
4. Flange ends conform to SABS1123.
Soft seal gate valves(SABS664)are the replacement of the traditional gate valves,using the compensation action of flexible disc making trace deformation to achieve good sealing effect,This kind of valve has the outstanding advantage of overall rubber coating,anti-corrosion,nonbreakable,good elastic memory and long service life etc.it can be widely used on tap water,sewage,construction,food,electric power,medicine,metallurgy,light textile.energy systerm and other fluid on the pipeline as the adjusting and the closure device.

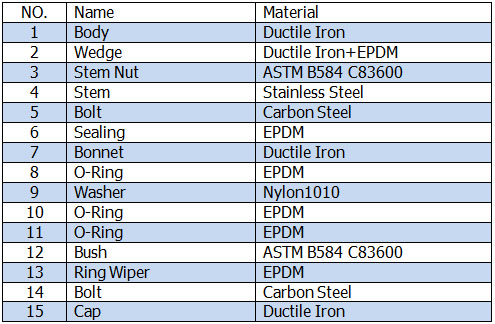

The Major Parts Material

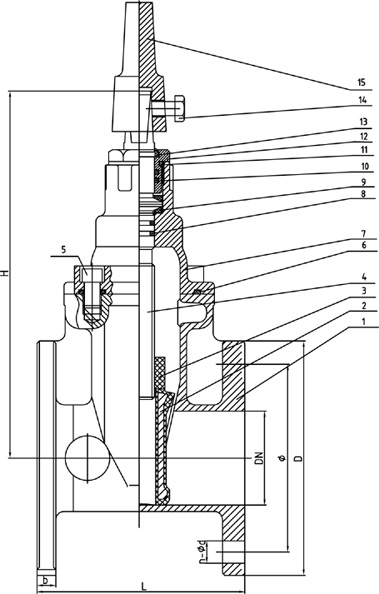

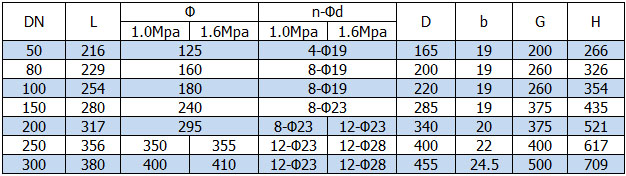

Main Connection Dimensions(mm)
