Lever Weight Swing Check Valve
No.:HZF0112
1. Face to face according to:DIN3202 F6.
2. Flange according to :EN1092-2 PN10/16.
3. Size: DN40-DN400.

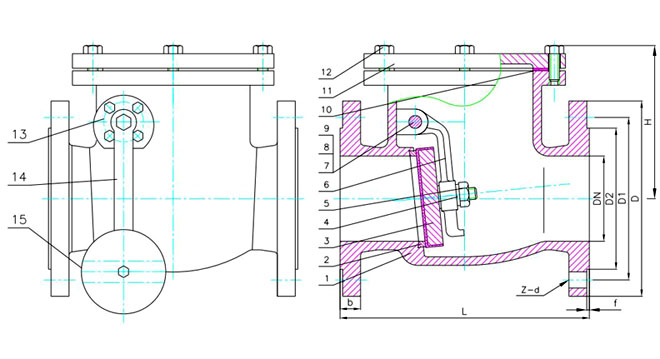

Heavy-Duty Swing Check Valve is ruggedly designed to withstand the rigor and frequent operation of pump station use, opening freely when the pump starts and closing quickly and quietly upon pump shutdown to prevent reverse flow. For additional configurations, see drawing and photos.

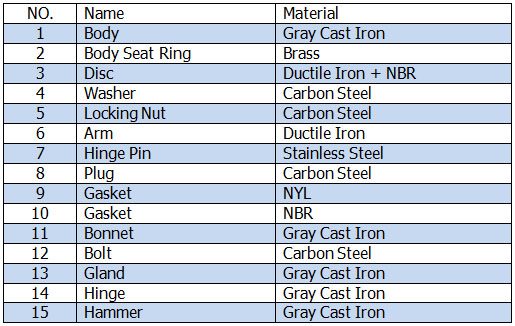

The Major Parts Material

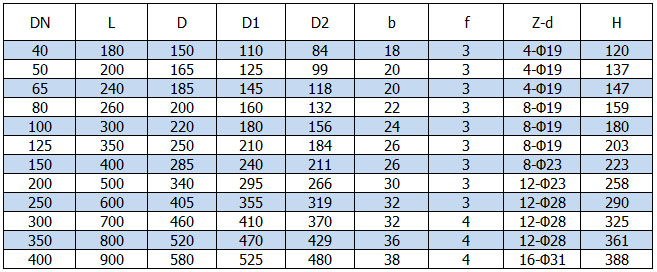

Main Connection Dimensions(mm)
