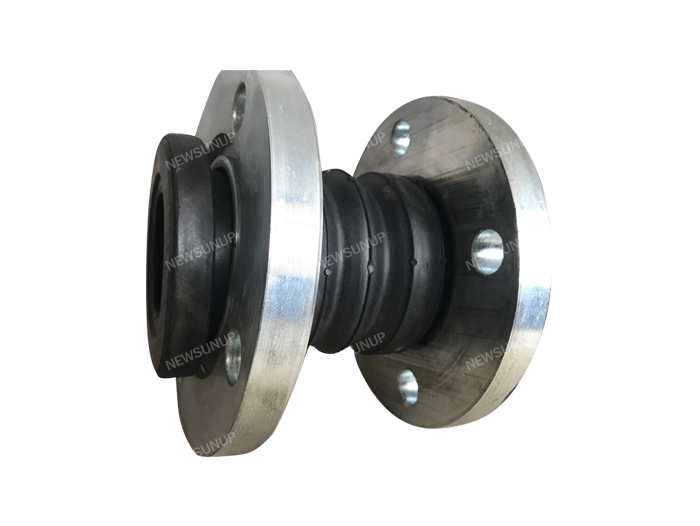

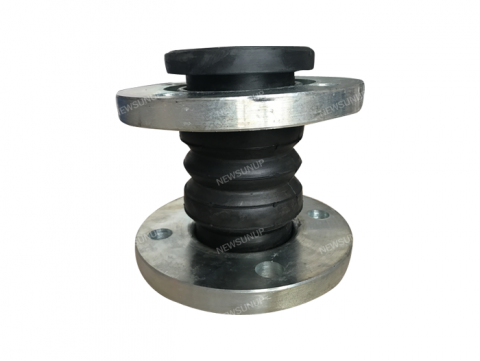

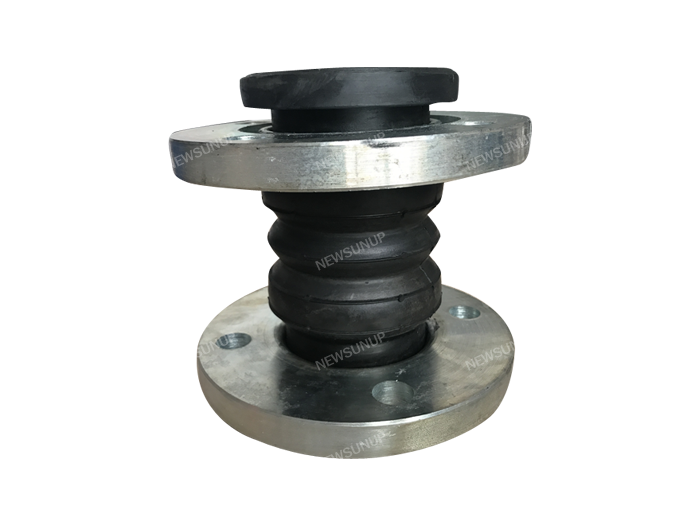

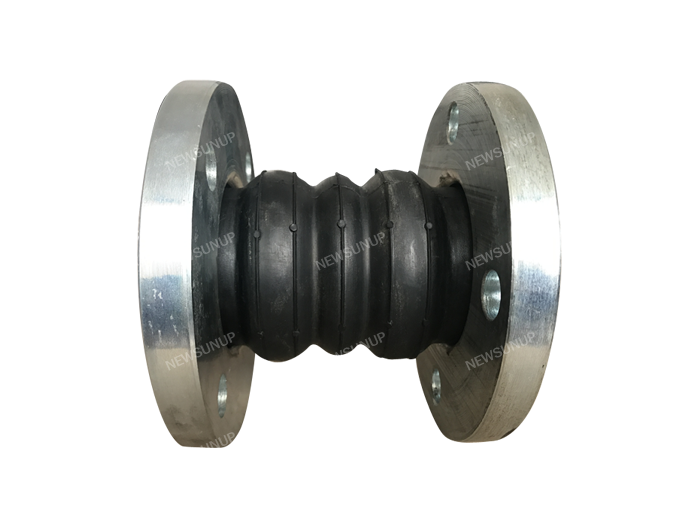

Double Sphere Rubber Expansion Joint
No.:JRF0103
1. Working Pressure: PN10/PN16.
2. Working Temperature: EPDM.-35℃+120℃. NBR.-12℃+82℃.
3. Fittings between flanges: DIN1092-2 PN10.
- With multi-sphere structure so that the vibration absorption is better and noise reduction efficiency is significant.
- High working pressure, anti-burst and good elasticity.
- To avoid damage caused by stretching, compressing, deflecting or displacing of pipes.
- Carbon steel flanges, zinc plated to BS4505 PN16(Other flanges available).
- EPDM rubber suitable for hot water steam, oxidant, animal and vegetable oils.
- Excellent resistance to sunlight. good for high and low temperature applications.
- NBR is suitable for most hydrocarbons, oils and petroleum fuels and hydraulic fluids. Not good for sunlight ageing, ozone and flame.
- Neoprene suitable for water sewage, oxidant and non-aromatic hydrocarbons. Good for oil resistance and weathering.

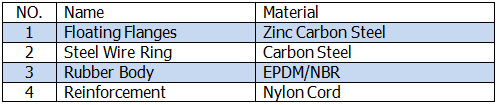

The Major Parts Material

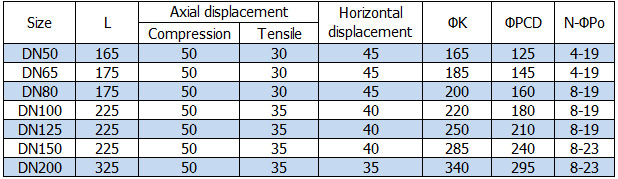

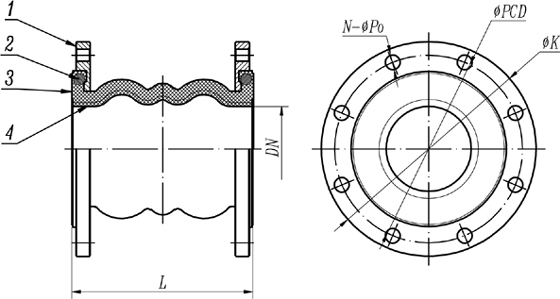

Main Connection Dimensions(mm)
