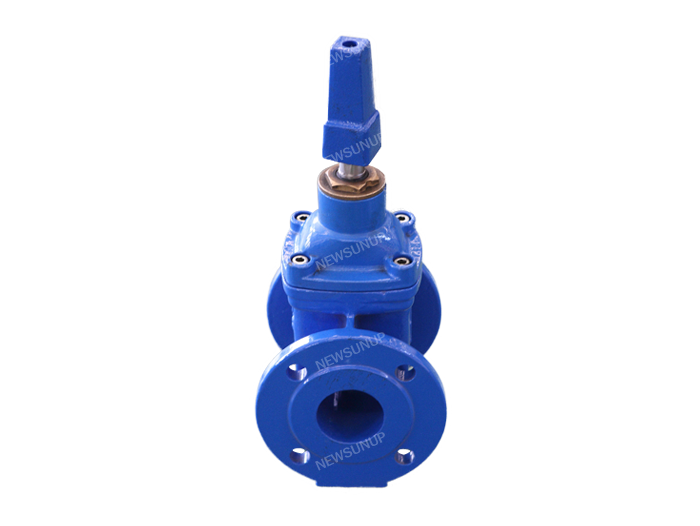

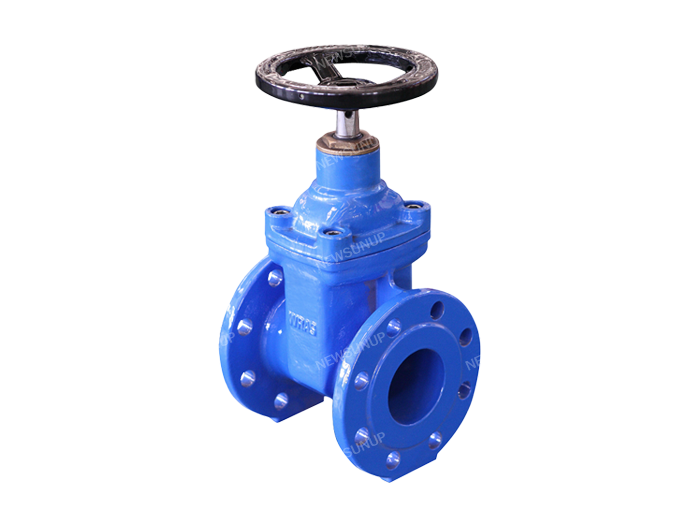

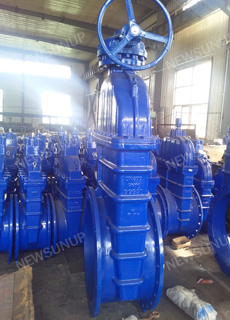

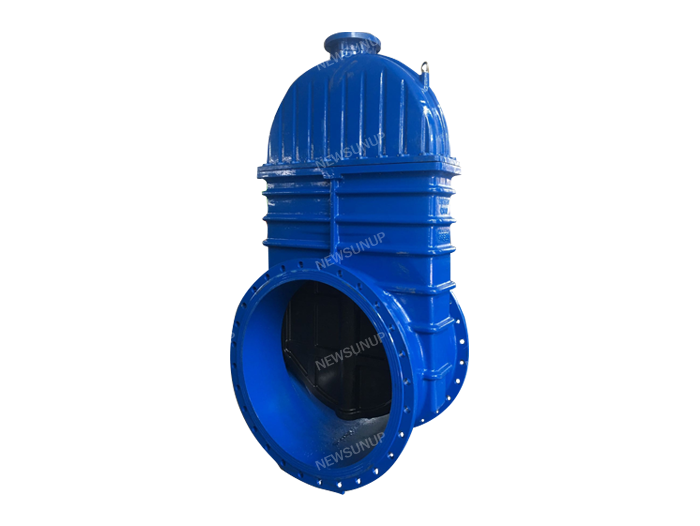

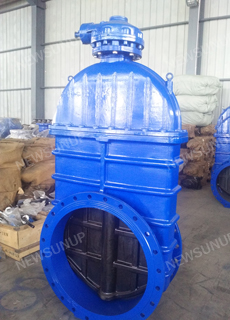

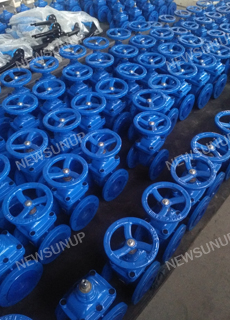

DIN3352-F4 Non-rising Stem Resilient Soft Seat Gate Valves
No.:ZQF0106
1. Face to face is according to DIN EN558-1.
2. Flange drilled is according to DIN EN1092-2.
3. Working temperature:0～100℃.
4. Working pressure:PN10-PN16.
Soft seal gate valves are the replacement of the traditional gate valves,using the compensation action of flexible disc making trace deformation to achieve good sealing effect,This kind of valve has the outstanding advantage of overall rubber coating,anti-corrosion,nonbreakable,good elastic memory and long service life etc.it can be widely used on tap water,sewage,construction,food,electric power,medicine,metallurgy,light textile.energy systerm and other fluid on the pipeline as the adjusting and the closure device.

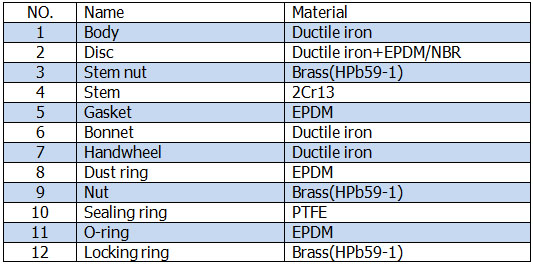

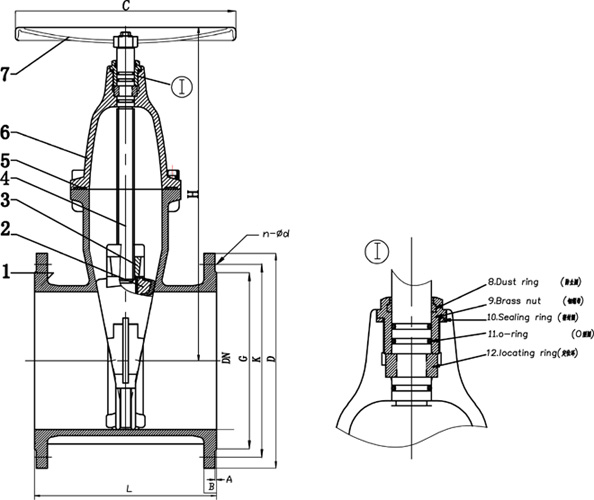

The Major Parts Material

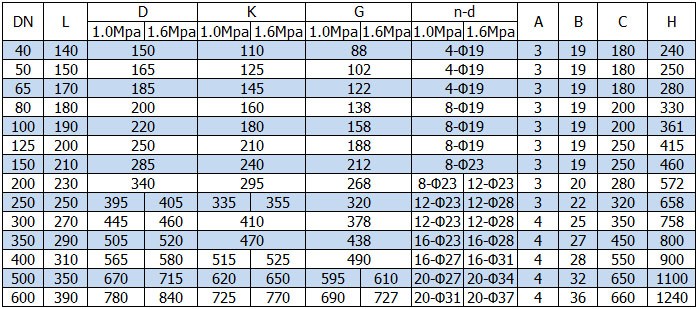

Main Connection Dimensions(mm)
