BS5163 Rising Stem Resilient Soft Seat Gate Valves

BS5163 Rising Stem Resilient Soft Seat Gate Valves
No.:ZQF0105
1. Design and manufacture:BS5163.
2. Face to face dimensions:BS5163.
3. Flanged end:BS4504/EN1092-2.
4. Size:DN40-DN400.
5. Working pressure:PN10,PN16,PN25.
6. Max working temperature:NBR-80℃ EPDM-120℃ Silica gel-150℃.

Category:

Soft seal gate valves are the replacement of the traditional gate valves,using the compensation action of flexible disc making trace deformation to achieve good sealing effect,This kind of valve has the outstanding advantage of overall rubber coating,anti-corrosion,nonbreakable,good elastic memory and long service life etc.it can be widely used on tap water,sewage,construction,food,electric power,medicine,metallurgy,light textile.energy systerm and other fluid on the pipeline as the adjusting and the closure device.

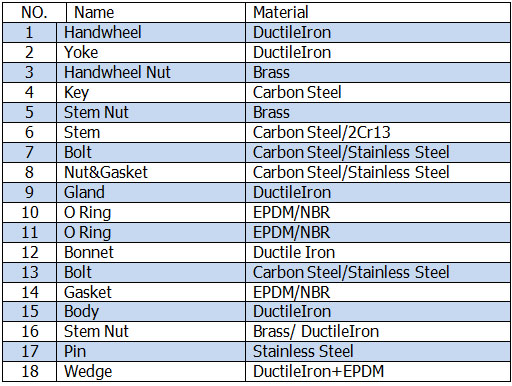

The Major Parts Material

1

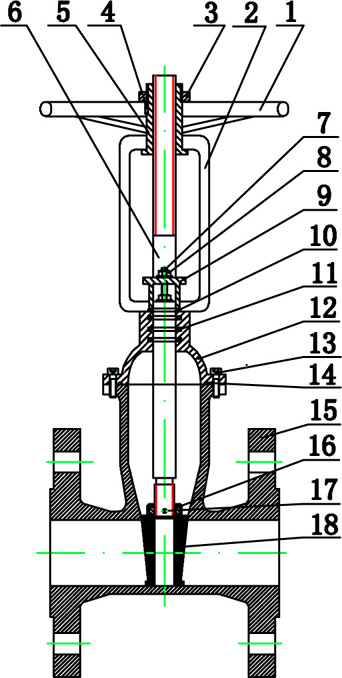

Drawing 02

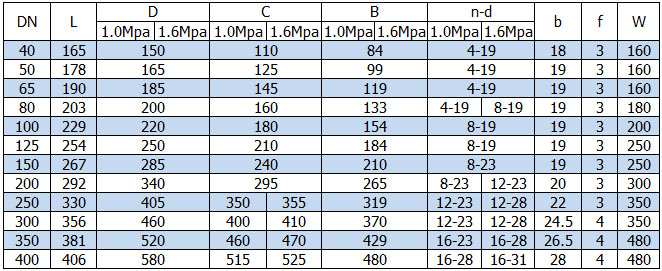

Main Connection Dimensions(mm)

3

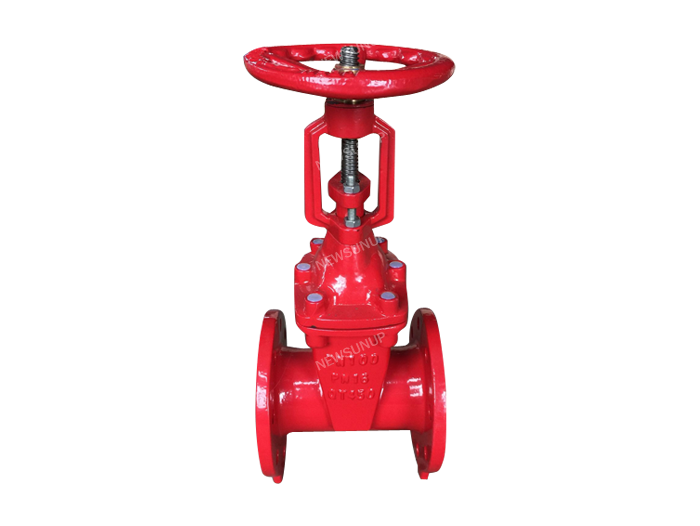

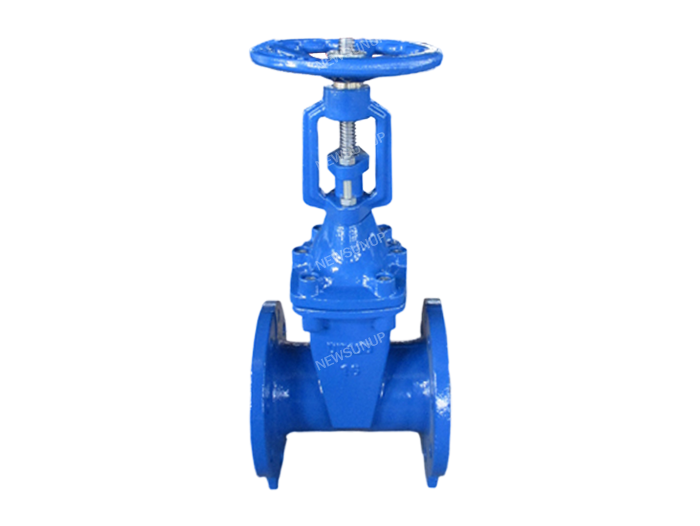

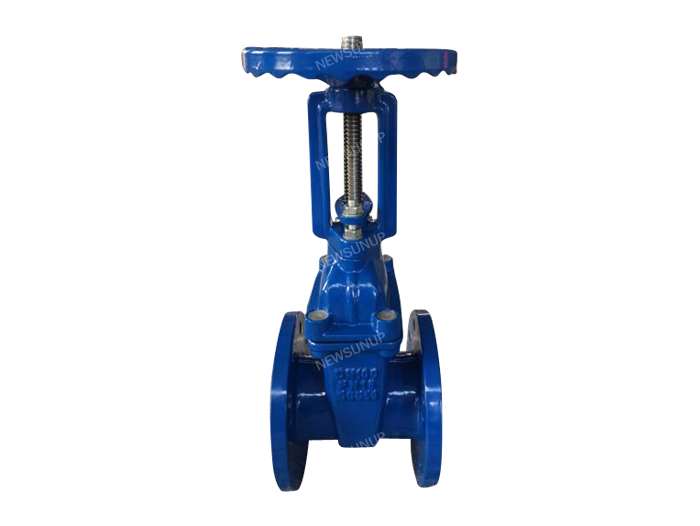

BS5163 Rising Stem 01 (1) BS5163 Rising Stem 01 (2) BS5163 Rising Stem 01 (3)
