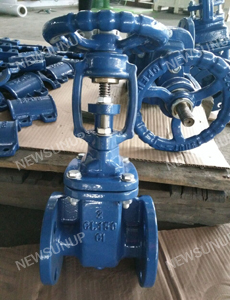

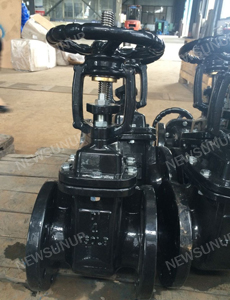

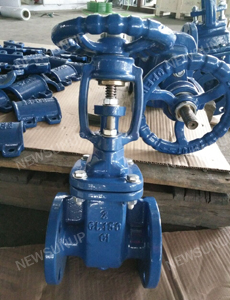

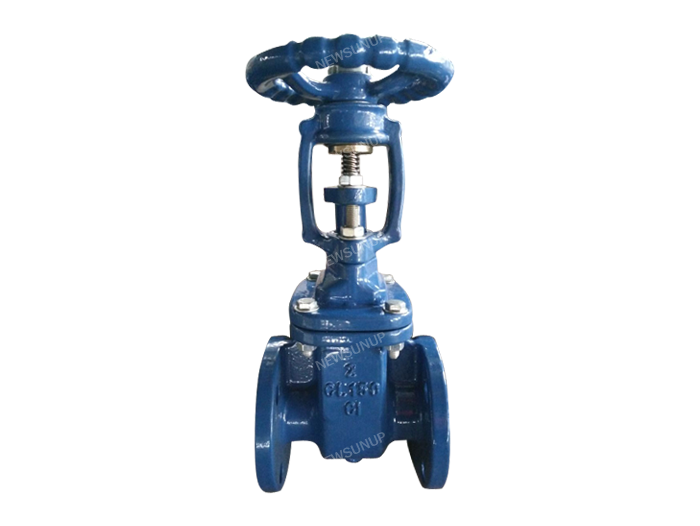

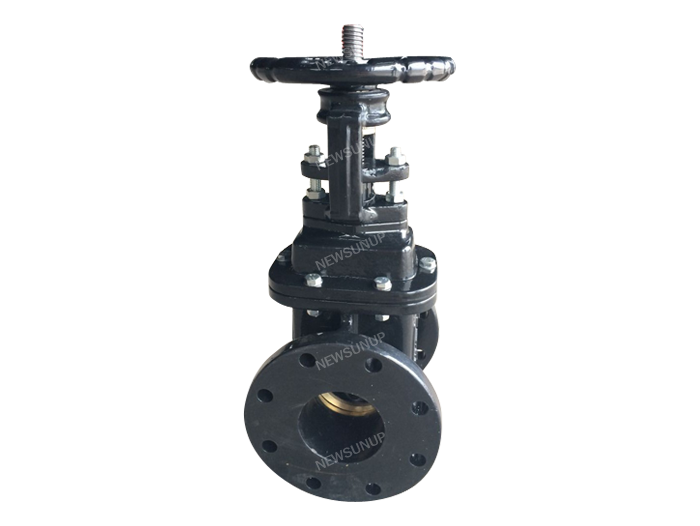

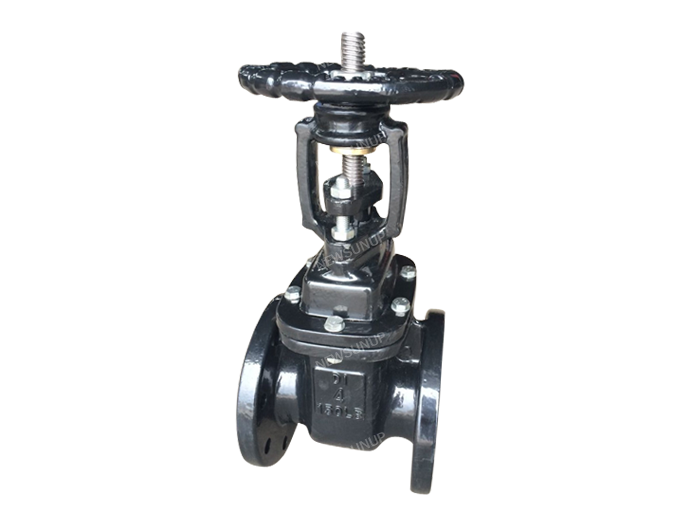

BS5163 Rising Stem Metal Seat Gate Valve
No.:ZQF0205
1. Face to face is according to ANSI B16.1.
2. Flange drilled is according to ANSI B16.1/16.5.
3. Working temperature: 0~100℃.
4. Working pressure: CL125-CL150.
Metal seat cast iron gate valve is one kind of equipment which can be widely used on oil and steam pipelines in petrochemical plant and coal-fired power plants to connect or truncate the medium in pipelines. This valve has the advantage of compact structure, reasonable design, good rigidity, smooth channel and small flow resistance coefficient. This kind valve adopt flexible graphite packing to make seal reliably, operate portably and flexibly. Stainless steel and hard alloy seat to make service life longer. The drive way can be classified into manual, electric, pneumatic and gear transmission.

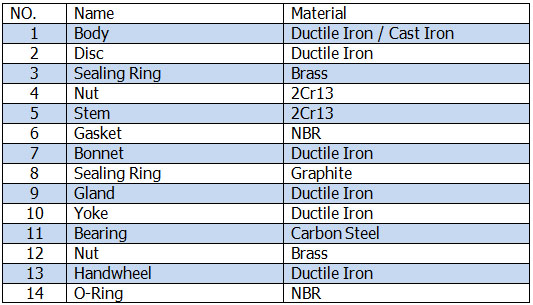

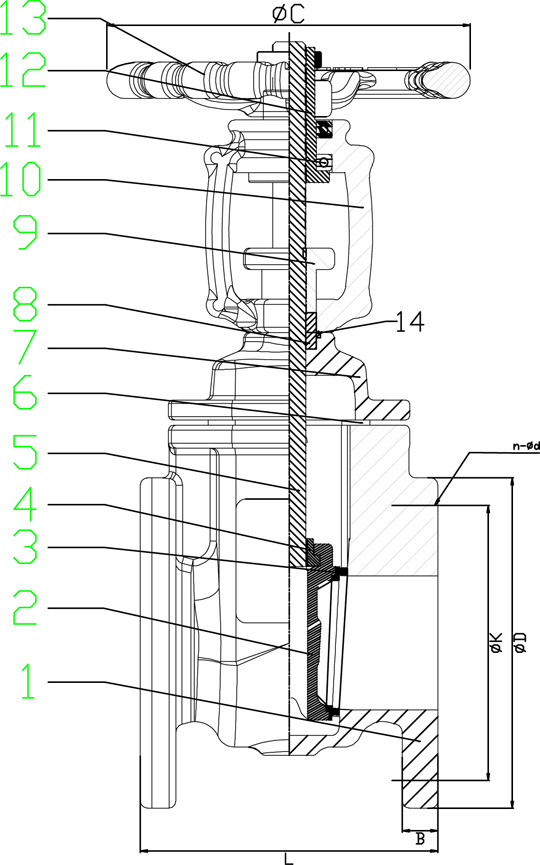

The Major Parts Material

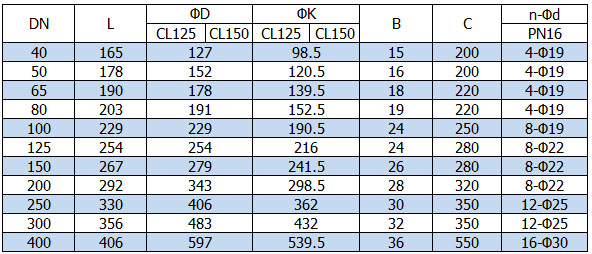

Main Connection Dimensions(mm)
